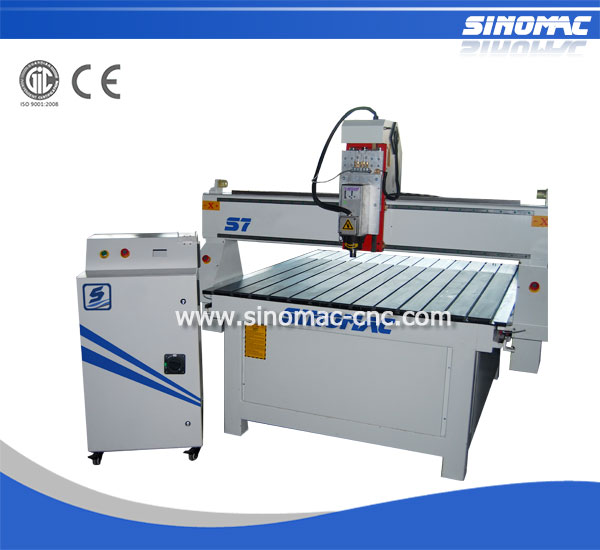

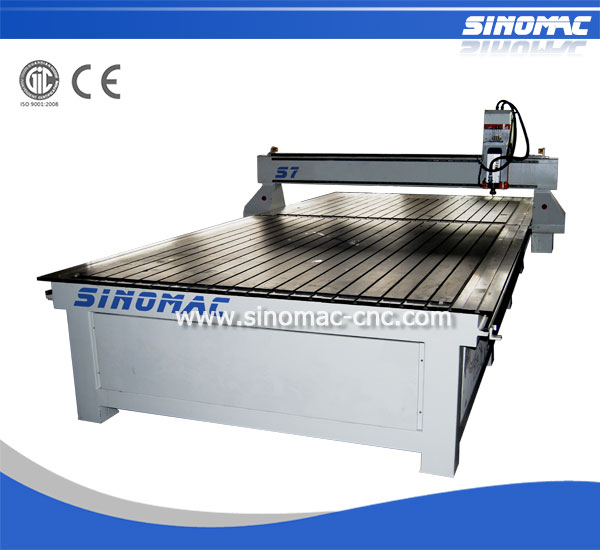

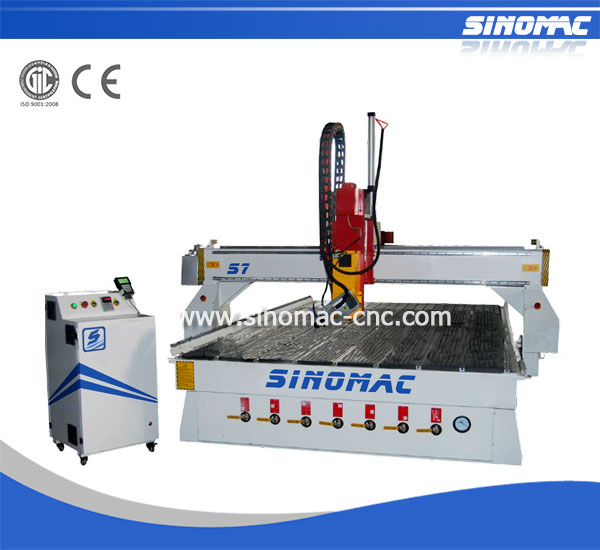

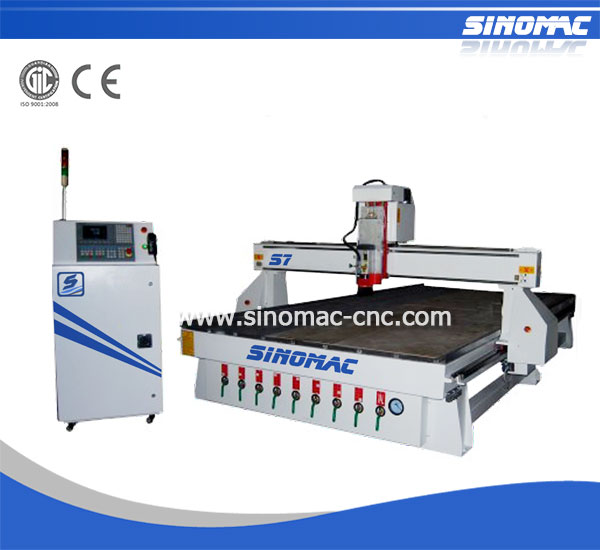

This machine is an special order from our costumer, which with 1500mm length panel T-slot table,
and 1000mm length rotary type table. The machine with 400mm Z(height) working size,
for the rotary, the Z axis can be 500mm travel. The rotary can carry 1000mm diameter, 1000mm
length cylinder.
The machine with stepper motors, HSD spindle, Delta inverter and dust collector, is qualified for woodworking, big size and mass producing.
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum
holding way and dust collector.
Top Quality Components
1. The machine’s body is strong, high-precision, reliable and durable.
2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3. High-performance driven motor to ensure the machine’s high speed and accuracy.
4. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
5. Auto lubrication system and separated control system, easy to operate.
6. High speed servo motors and drivers, and two motors for Y axis.
7. Perfect design, top quality accessories, to minimize the machine’s failure rate.
Performance parameter
|
Number |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x1500x400mm&1000*1000*500mm |
|
2 |
Table Size |
1450×2940mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
5 |
Table Surface |
T-slot table and rotary |
|
6 |
Frame |
Welded Structure |
|
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
|
9 |
Max. Power Consumption |
(Without spindle) 4.2Kw |
|
10 |
Max. Rapid Travel Rate |
35000mm/min |
|
11 |
Max. Working Speed |
25000mm/min |
|
12 |
Spindle Power |
3.0/4.5/6/7KW |
|
13 |
Spindle Speed |
0-18000RPM |
|
14 |
Drive Motors |
Servo System |
|
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
DSP System (options: Ncstudio/Mach3 PC Software) |
|
18 |
Computer Interface |
USB |
|
19 |
Flash Memory |
128M(U Disk) |
|
20 |
Collet |
ER25 |
|
21 |
X,Y Resolution |
<0.03mm |
|
22 |
Software Compatibility |
Type3/UcancameV9 Software (Option: Artcam software) |
|
23 |
Running Environment Temperature |
0 - 45 Centigrade |
|
24 |
Relative Humidity |
30% - 75% |
|
25 |
Packing Size |
5100X2300X2200mm |
|
26 |
N.W. |
1800KG |
|
27 |
G.W. |
2100KG |
|
28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
|
Syntec Control System |
|
Dust Collector |
|
Vacuum Pump |
|
Mist-cooling System |
|
Delta /750W Panasonic Servo Motors |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, email or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
