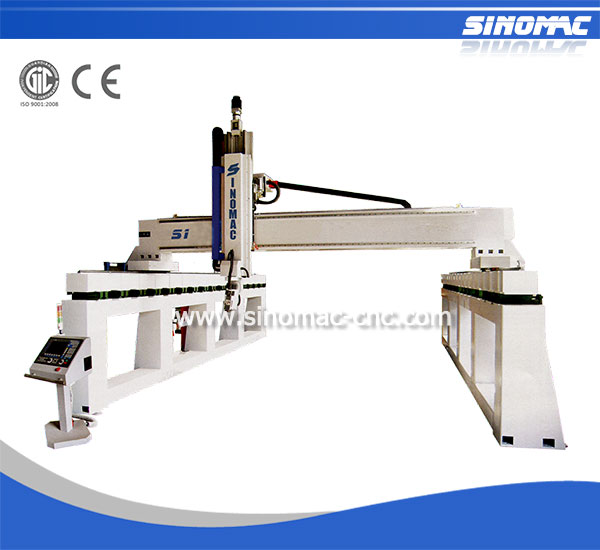

CNC Router 1212 S1





1. Brief introduction
With OSAI numerical control system, the machine is of high speed and high machining accuracy. The Hiwin linear rails and the Germany original rotating arm ensure the accuracy and strength of the machine.

Z-axis travel can be heightened to 1.2 meters. The spindle can rotate +/-90 degree along Y axis, and the round table can rotate 360 degree, very suitable for stone sculpture and wood statue and other model works.



2. Top Quality Components:
1.) The machine’s body is strong, high-precision, reliable and durable.
2.) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3.) Well-known Italian HSD water cooling spindle, strong cutting ability, low noise, professinal for stone processing, to ensure the machine working for long time.
4.) High-performance Japanese Yaskawa servo driven motor to ensure the machine’s high speed and accuracy.
5.) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
6.) Perfect design, top quality accessories, to minimize the machine’s failure rate.
7.) The intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.
8.)Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and it improves the quality and efficiency greatly.



Number	Description	parameter
1	X Y Z Axis working area	1200*1200*1200mm
2	Table size	1200mm diameter
3	Positioning accuracy	±0.03/300mm
4	Reposition positioning accuracy	±0.03/300mm
5	Frame	Heavy steel
6	Drive system X,Y axis	Rack and pinion
7	Drive system Z axis	Ball screw
8	Max power consumption	15.0KW
9	Max velocity	25000mm/min
10	Max working speed	15000mm/min
11	Spindle power	7.5kw HSD spindle
11	Spindle speed	0-24000rmp
12	Drive motor	Yaskawa servo
13	Working voltage	AC380V
14	Command language	G code
15	Interface	Ethernet
16	Operating system	Italian Osai
17	Flash memory	PC control
19	X-Y resolution	0.03/300mm
20	Software	Alpha Cam,Becam,Type3, UcancamV9
21	Running	Temperature:0 -45 centigrade
22	Packing size	3200*3000*2200mm (in parts)
23	Net weight	8T
24	Gross weight	9T



1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
