5-axis CNC Machine S1-1838
1. Brief introduction
With OSAI numerical control system, the machine is of high speed and high machining accuracy. The Hiwin linear rails and the Germany original rotating arm ensure the accuracy and strength of the machine.
Z-axis travel can be heightened to 1.2 meters, so it is very suitable for processing large-scale three-dimensional surface, special for cars model.
The intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.
Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and it improves the quality and efficiency greatly.
2. Applicable industries
Mold industry: Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold and wooden mold train.
Instrument industry: 3D surface engraving and shape cutting of large-scale instruments.
3. Performance parameter
|
Number |
Description |
parameter |
|
1 |
X Y Z C A Axis working area |
1800*3800*950mm* 210degree*180degree |
|
2 |
Table size |
800*2800mm |
|
3 |
Positioning accuracy |
±0.03/300mm |
|
4 |
Reposition positioning accuracy |
±0.03/300mm |
|
5 |
Frame |
Heavy steel |
|
6 |
Drive system X,Y,Z axis |
Ball screw |
|
8 |
Max power consumption |
10.0KW |
|
9 |
Max velocity |
25000mm/min |
|
10 |
Max working speed |
15000mm/min |
|
11 |
Spindle power |
15.0kw ATC spindle |
|
11 |
Spindle speed |
0-24000rmp |
|
12 |
Drive motor |
Yaskawa servo 1.8KW |
|
13 |
Working voltage |
AC380V |
|
14 |
Command language |
G code |
|
15 |
Interface |
Ethernet |
|
16 |
Operating system |
Italian Osai |
|
17 |
Flash memory |
PC control |
|
18 |
Toolholder and collet |
HSK F63/ ER40 |
|
19 |
X-Y resolution |
0.03/300mm |
|
20 |
Software |
Alpha Cam,Becam,Type3, UcancamV9 |
|
21 |
Running |
Temperature:0 -45 centigrade |
|
22 |
Packing size |
5200*3000*2200mm (in parts) |
|
23 |
Net weight |
13T |
|
24 |
Gross weight |
14T |
4. Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
5. Parts for this machine

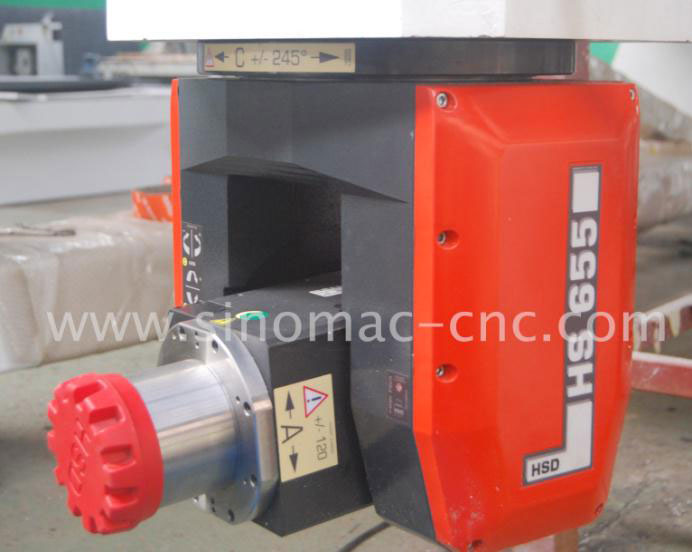

1). 15.0kw HSD spindle is origional from Italy.

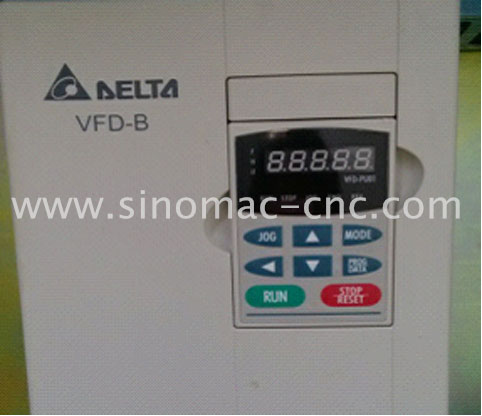

2).18.5kw Taiwan Delta VFD-B inverter.

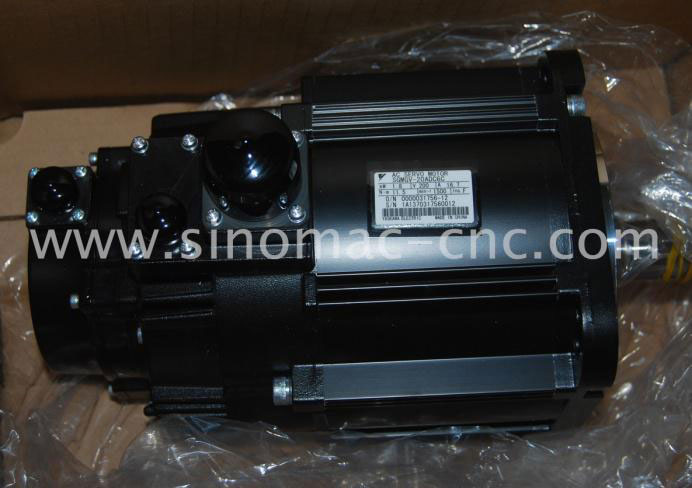

3).1.8kw Japanese Yaskawa servo motor.

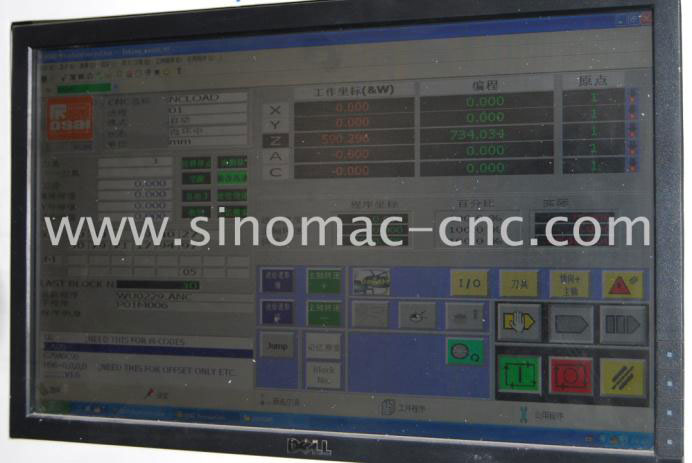

4).Italian Osai control system

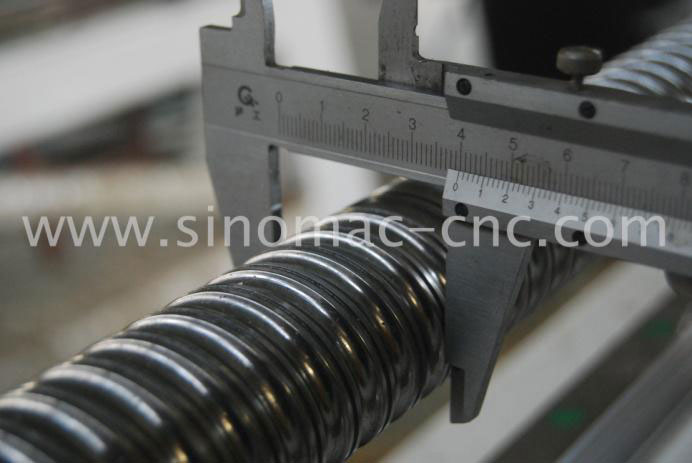

5).40mm diameter Taiwan TBI ball screw.

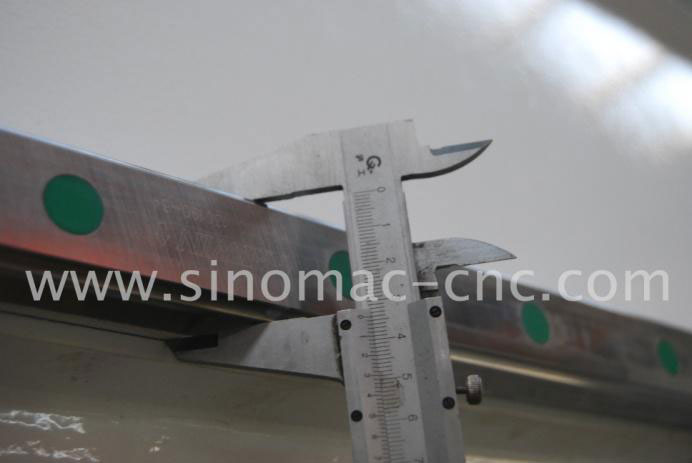

6). HGR35 Taiwan Hiwin linear rail, two rails for each Y axis.

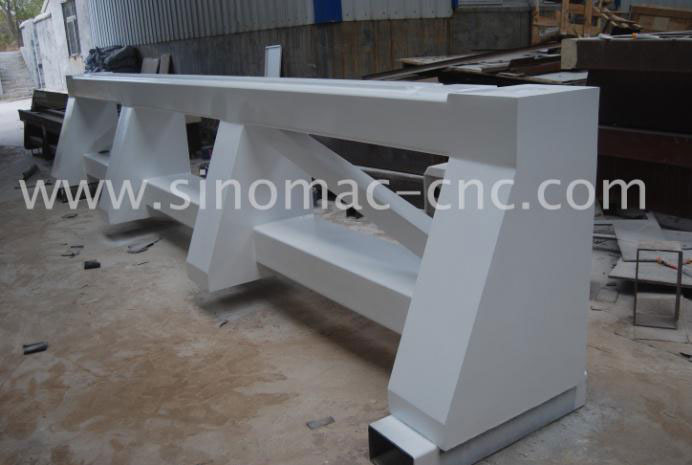

7). Strong welded steel tube structure.
8). Strong gantry and side board

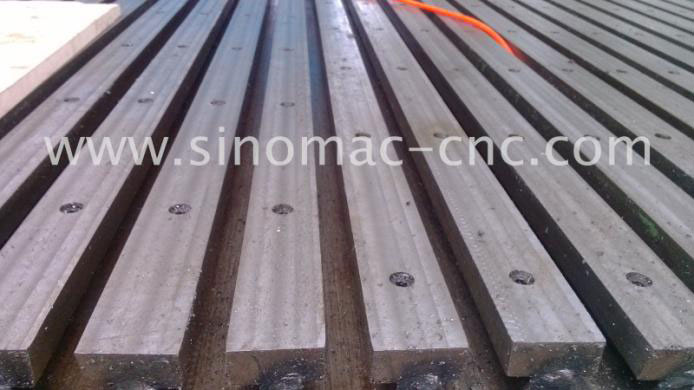

9). Steel T-slot table

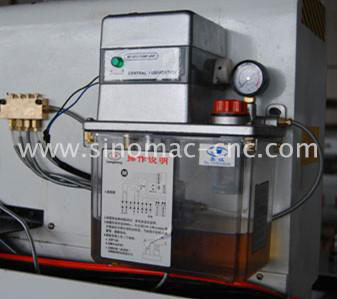

10). Automatic lubrication system
|
